Product Name

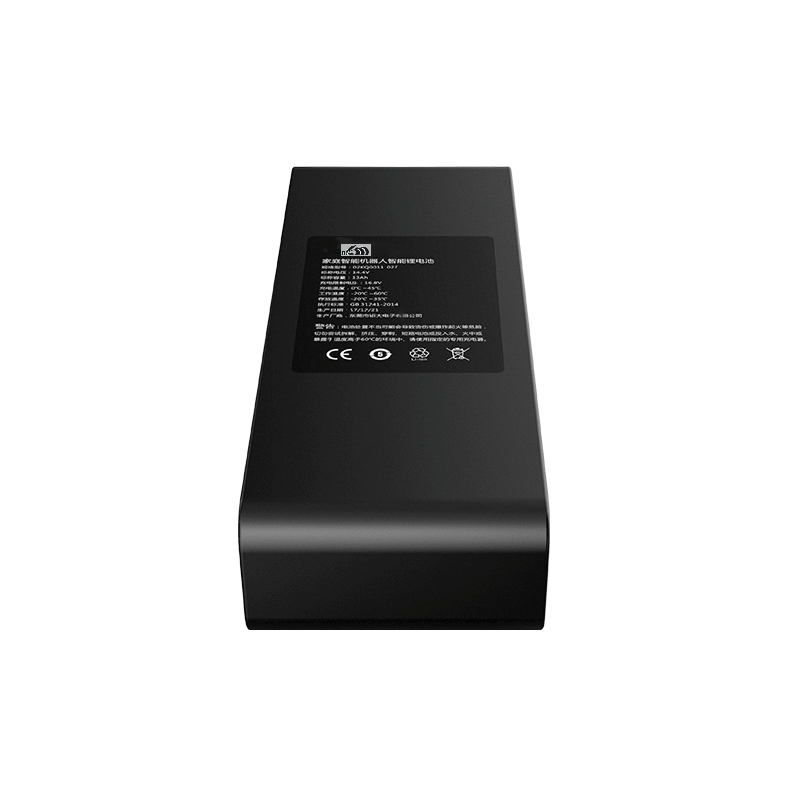

ICR18650*7S5P  Lithium ion battery for Household Intelligent Robot with SMBUS Communication Port

Nominal Voltage

 25.9V

Capacity

 13Ah

Operating Temperature

 Charging:0℃~50℃; Discharging: -20℃~+60℃

Max Charging Voltage (DC)

 29.4V

Charging Mode

 CC-CV

Charging current

 ≤3A

Discharging current

 2.6A

Instant discharging current

 5A

Internal resistance

 ≤150mΩ

End-off Voltage

 17.5V

Weight

 1.7kg

Dimension

 150*101*70mm (Max)

Battery protection

Short circuit, overcharge, over-discharge, overcurrent, temperature protection, I2C communication, etc.

Applications

Intelligent Robot, Robotic arm, etc.
