ESS-6200W-10KWH Home Battery Storage

ESS-6200W-10KWh

10 KWh Energy Storage All-in-One System

Interfaces:
USB-A Output x 2

USB-C Output x 2

DC Output (5521 Port) x 2

AC Output x 3 Terminal Block Output

Pure Sine Wave

Supports Solar Charging

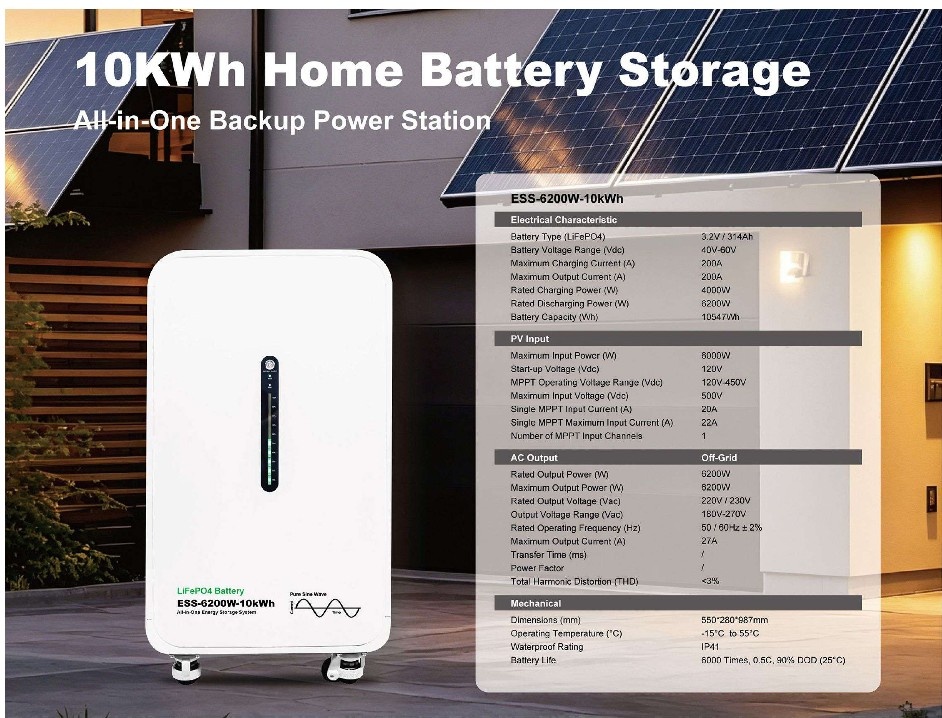

Battery Type: Lithium Iron Phosphate (LiFePO4)

Battery Capacity: 51.2V/206Ah (10547Wh)

AC Input: 170V-280V 2%@UPS

(90V-280V) 2%@APL, 50/60Hz, Max 6200W

PV Input (DC): 120–500V, Max 22A

AC Output (Terminal Block): 230V ±5%, 50/60Hz, Max 6200W

AC Output x 3: 230V ±5%, 50/60Hz, 2200W (Total 6200W Max)

DC Output x 2: 120W Max, 12V⎓ 10A

USB-A Output x 2: QC 18W Max, (5V⎓ 2.4A, 9V⎓ 2A, 12V⎓ 1.5A)

USB-C Output x 2: PD 100W Max, (5V⎓ 3A, 9V⎓ 3A, 12V⎓ 3A, 15V⎓ 3A, 20V⎓ 5A)

Operating Mode: Grid-tied / Off-grid

Cycle Life: 6000 cycles (90% DOD, 25℃)

Protection Level: IP41

Operating Temperature: 0℃ ~ 40℃

Dimensions: 550×280×987mm

Net Weight: 115 kg
