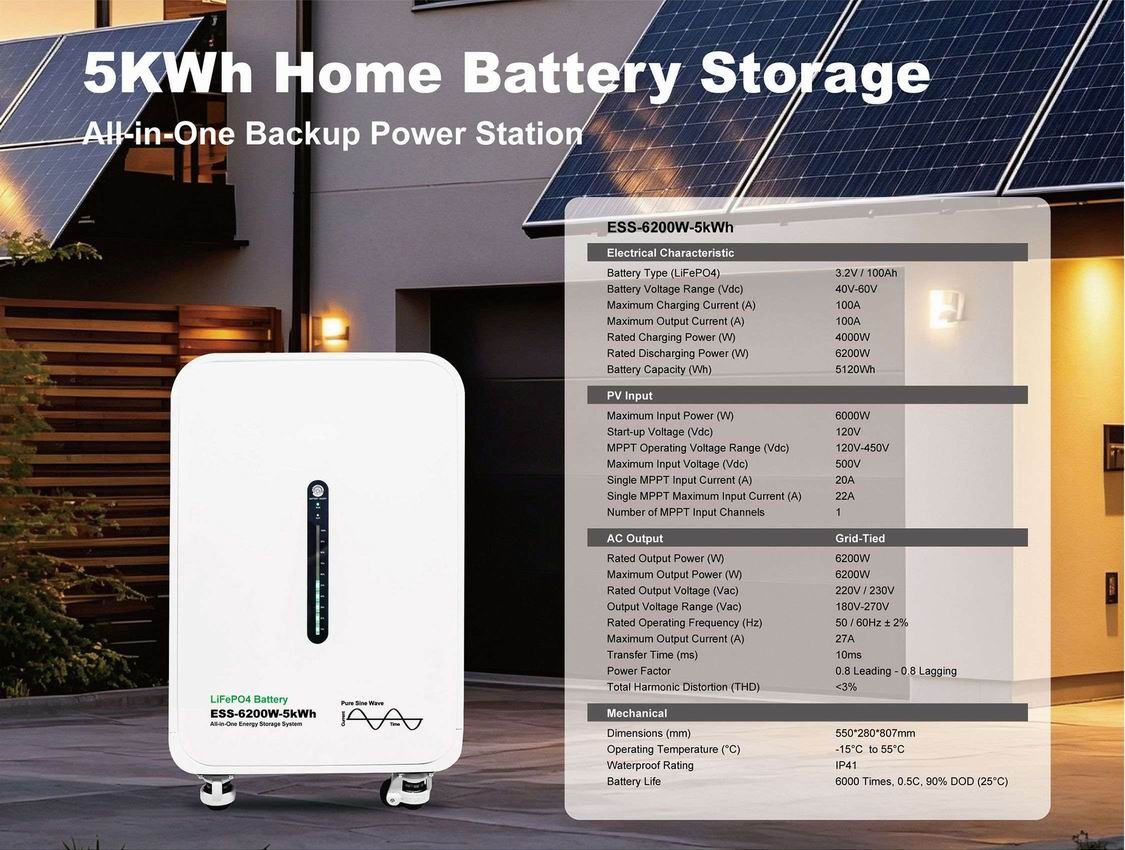

ESS-6200W-5KWh Home Battery Storage
- Product No.：ESS-6200W-5KWh
- Voltage：51.2V
- Capacity：100Ah
ESS-6200W-5KWh
5 KWh Energy Storage All-in-One System
Interfaces:
USB-A Output x 2
USB-A Output x 2
USB-C Output x 2
DC Output (5521 Port) x 2
AC Output x 3 Terminal Block Output
Pure Sine Wave
Supports Solar Charging
Battery Type: Lithium Iron Phosphate (LiFePO4)
Battery Capacity: 51.2V/100Ah (5120Wh)
AC Input: 170V-280V 2%@UPS
(90V-280V) 2%@APL, 50/60Hz, Max 6200W
PV Input (DC): 120–500V, Max 22A
AC Output (Terminal Block): 230V ±5%, 50/60Hz, Max 6200W
AC Output x 3: 230V ±5%, 50/60Hz, 2200W (Total 6200W Max)
DC Output x 2: 120W Max, 12V⎓ 10A
USB-A Output x 2: QC 18W Max, (5V⎓ 2.4A, 9V⎓ 2A, 12V⎓ 1.5A)
USB-C Output x 2: PD 100W Max, (5V⎓ 3A, 9V⎓ 3A, 12V⎓ 3A, 15V⎓ 3A, 20V⎓ 5A)
Operating Mode: Grid-tied / Off-grid
Cycle Life: 6000 cycles (90% DOD, 25℃)
Protection Level: IP41
Operating Temperature: 0℃ ~ 40℃
Dimensions: 550×280×811mm
Net Weight: 78 kg
